Setfos 6.0 – Advanced Modeling and a New Thermal Module
Setfos 6.0 is a major update focused on advanced device physics for OLEDs, perovskite solar cells, and photodetectors. A new thermal module, extended modeling options, and a streamlined interface will help you achieve reliable results faster.

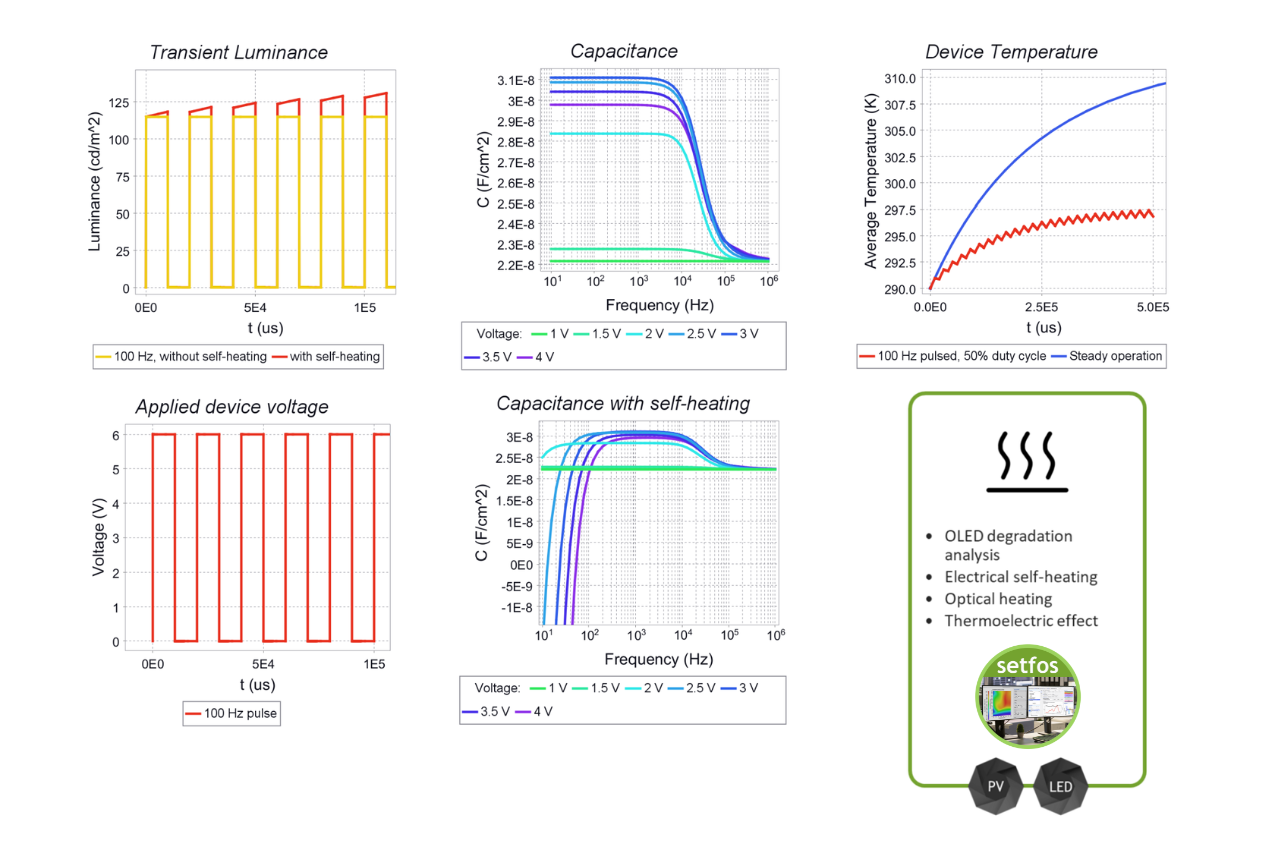

The New Thermal Module
Stand-alone thermal and coupled electro-thermal simulations
Optical heating, Joule heating, Thomson-Peltier heating
Support for steady-state, AC, and transient simulations
Various boundary condition types: Dirichlet, convective, and radiative
Included with the Thermal Module:
New OLED Degradation Model
Simulate typical effects observed during OLED degradation under constant current operation like
Luminance decay
Voltage increase
and attribute the generation of local defects to various physical processes. With Setfos 6.0, you can now:
Investigate which process causes irreversible degradation.
Increase OLED lifetime by optimized design, mitigating degradation processes.
Material Database
Searching and filtering of refractive index datasets
Automatic download of new datasets from Fluxim
Manage user-owned datasets
Optics
Post-processing of CIE color gamut coverage
Absorption-emission coupling with scattering
Stacked absorption contributions in absolute units
Computation of ideal JV curves (without full Drift-Diffusion)
Predefined scattering texture for aspherical microlenses
Post-processing of integrating sphere spectral emission and CIE coordinates
Drift-Diffusion
Layer-specific density of state (DOS) distributions: Gaussian, Parabolic, Dirac
Boltzmann and Fermi-Dirac statistics
Arbitrarily combine DOS types and mobility models
Models for band-to-band and intraband tunneling
New mobility model for thermally activated diffusion coefficient
Improved initial guess for better convergence

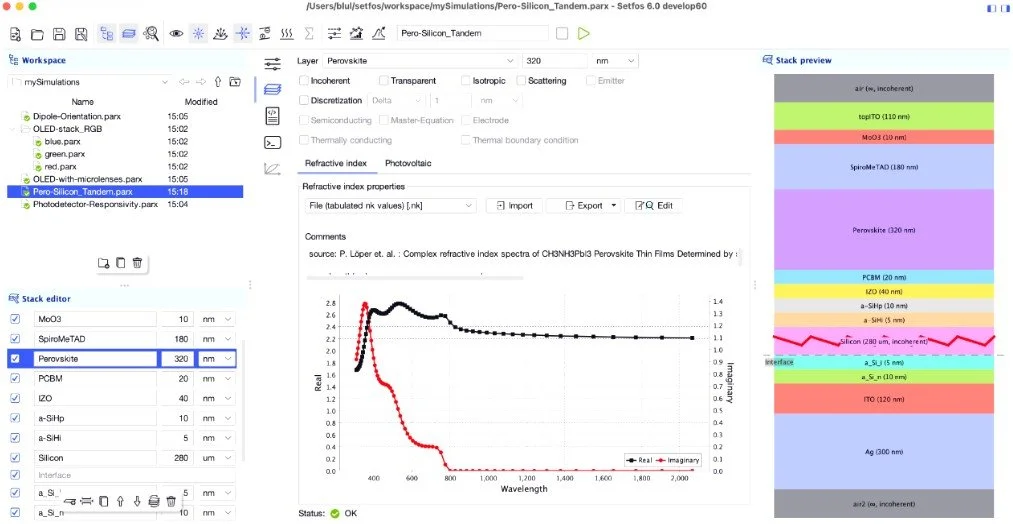

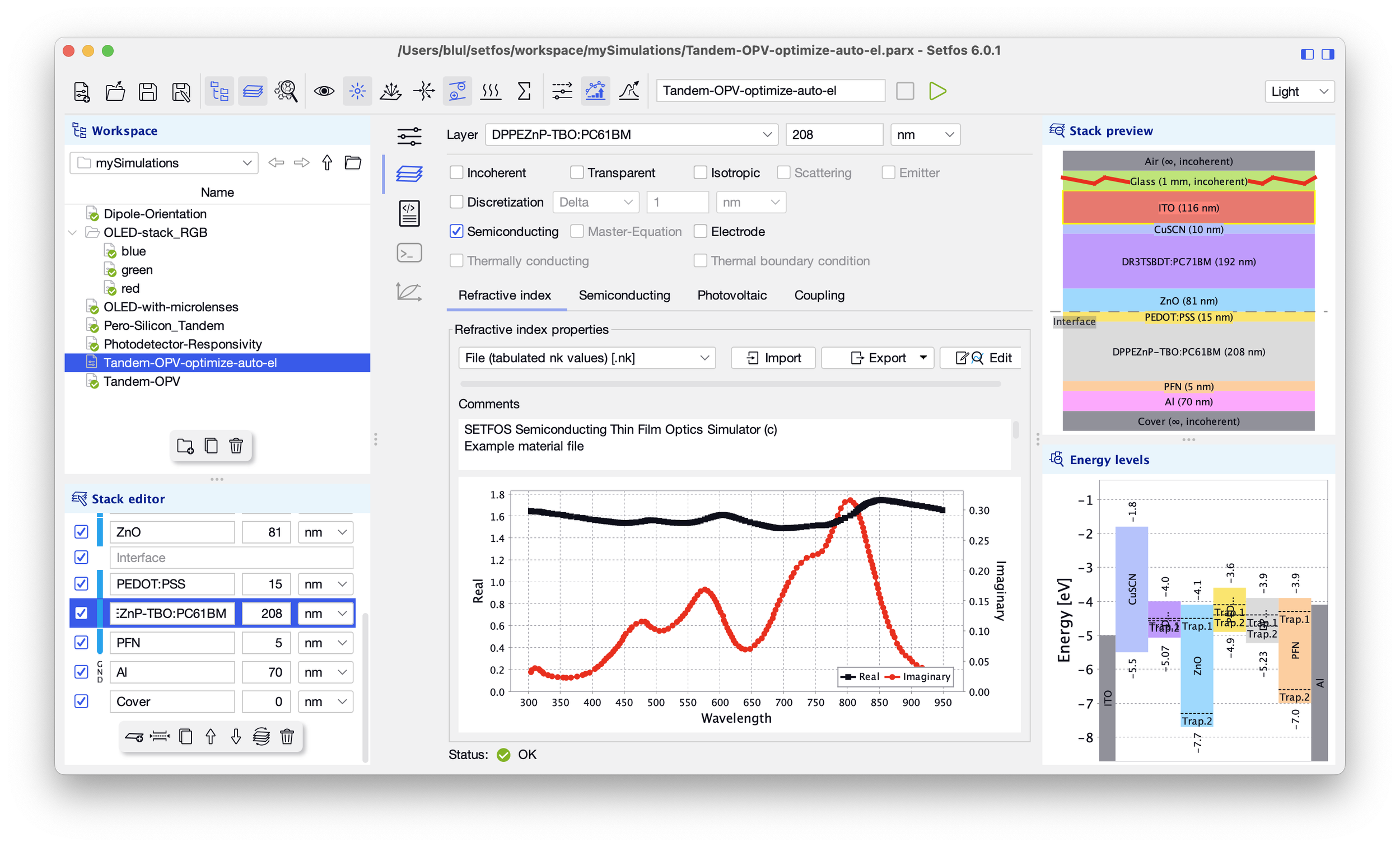

Setfos 6.0 GUI
Dark mode
3D preview of scattering textures
Interactive plot axis
Possibility to change the order of curves in a plot
Setfos 6.0 Slide Deck
Already a Setfos User? Download Version 6.0 Now.
Are you still using an older version of Setfos?

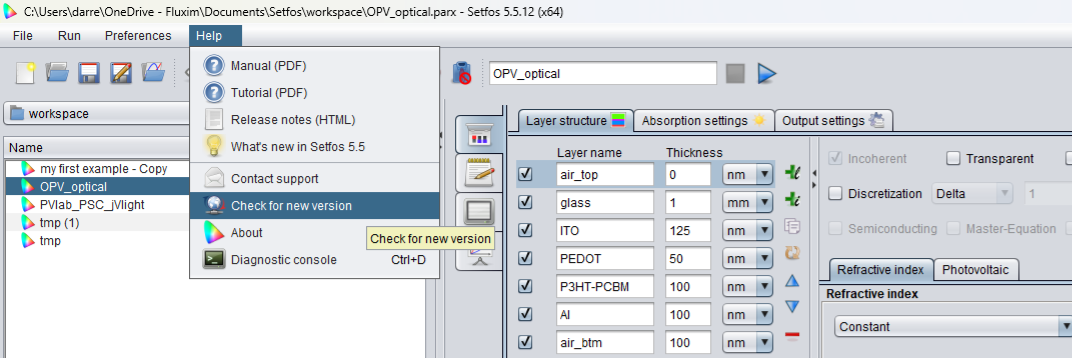

We recommend upgrading to the latest version so you can benefit from the latest features and enhanced simulation capabilities. To update to version 6.0, start Setfos and click on Help > Check for new version.
If you want to include the new Thermal Module, this will require an upgrade. Let us know, and we will help you.
New Setfos Tutorial- Modeling Mixed Ionic-Electronic Perovskites
Explore how to model the mixed ionic–electronic behavior of halide perovskite solar cells using Setfos. This step-by-step tutorial combines experimental data from Paios with optical and drift-diffusion simulations to reveal key insights into ion migration, performance, and stability. Perfect for researchers optimizing perovskite devices or developing tandems.
Read it here: Modeling Ionic Properties in Perovskite Solar Cells with Setfos — Fluxim
Webinar 16 -Exploring Efficiency and Degradation in Next-Generation OLEDs
For our 16th webinar, we are pleased to welcome our invited guest Prof. Andrew Monkman. Andy is the Director of the University of Durham Photonic Materials Centre and Head of the Organic Electroactive Materials (OEM) Research Group which he founded in 1988. His group's focus is on the photophysics of organic light emitting materials with application in OLEDs and solid-state lighting. Andy will be presenting:
Key Design Rules for Ultra-Efficient Sensitisation in Hyperfluorescence OLEDs
Following on from Andy will be Fluxim's Edoardo Stanzani. Edoardo is nearing the end of his PhD with Fluxim and the University of Valencia and will be presenting the following talk:
Electronic and Excitonic Mechanisms Evolution During OLED Degradation
Date & Time: Tuesday, 11th Nov 2025, 11 am - 12 pm (CET)
This webinar, hosted by Dr. Matthias Diethelm (Fluxim), is a must-attend for researchers from industry and academia interested in OLED research and innovation.
We look forward to seeing you there!
21 Years of Research with Setfos
Setfos has significantly advanced LEDs, photovoltaics, and photodetectors over the past 21 years. We are immensely proud that our software has enabled over 600 research papers and has driven numerous technological innovations.
