Scientific Tools that Boost your R&D
We provide simulation software and measurement hardware for research and development of OLED and solar cells to our customers in industry and academia. Our software is used to gain insight into device operation and for optimizing device performance.
Scientific tools for OLED lighting and display.
Checkout our tools for OLED research
Solar Cell Research
Scientific tools for organic solar cells, perovskite solar cells and other photovoltaic technologies.
Checkout our tools for solar cell research

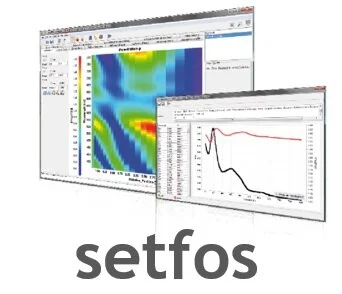

Simulation Software for Thin-Film Optics and Drift-Diffusion

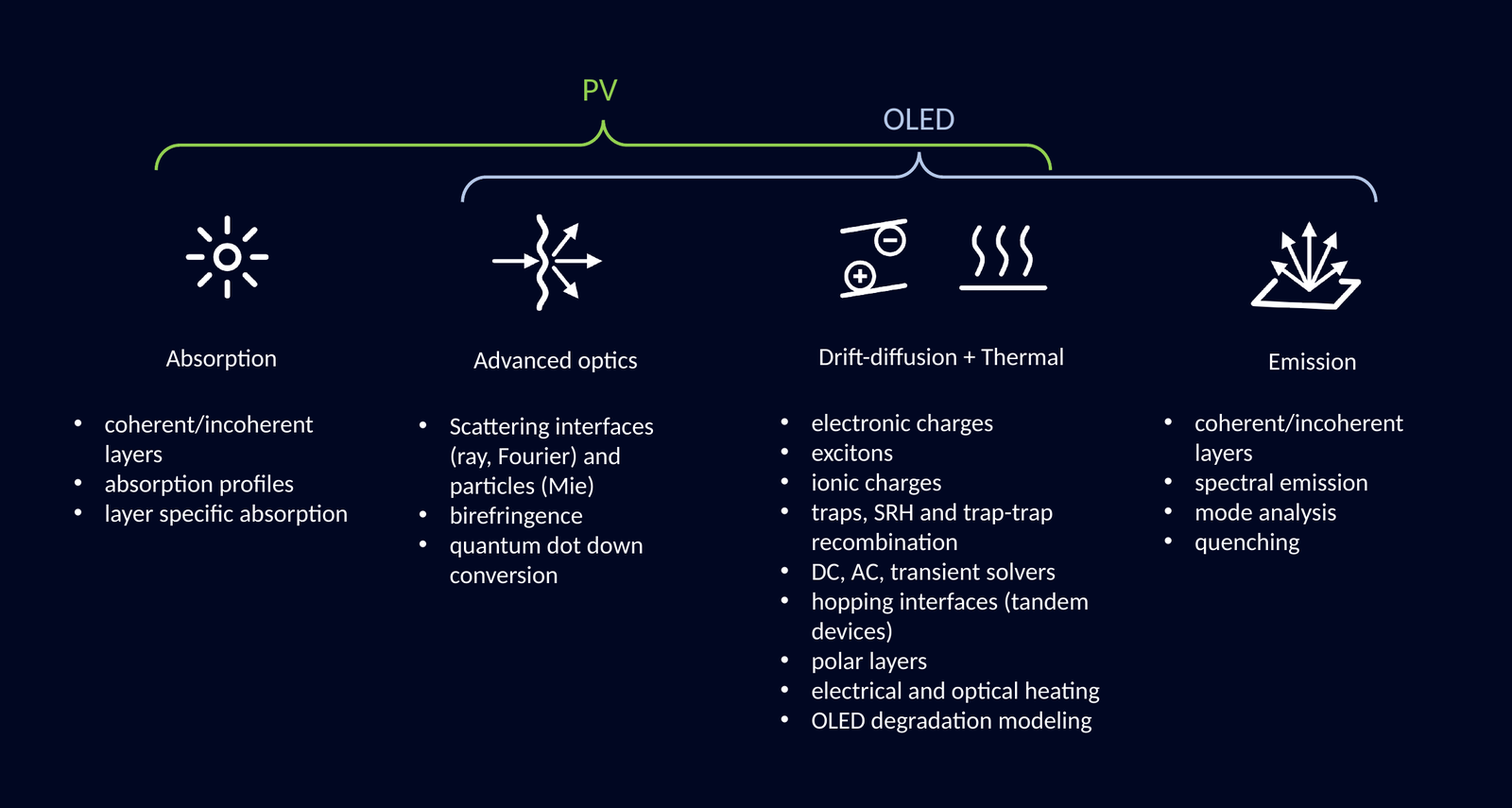

Simulate light emission and absorption, light scattering and charge transport of solar cells and OLEDs with Setfos.

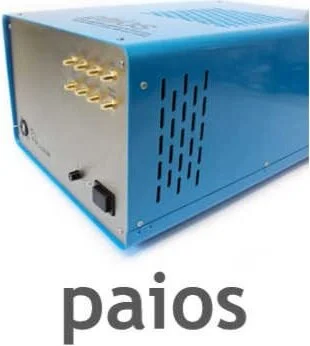

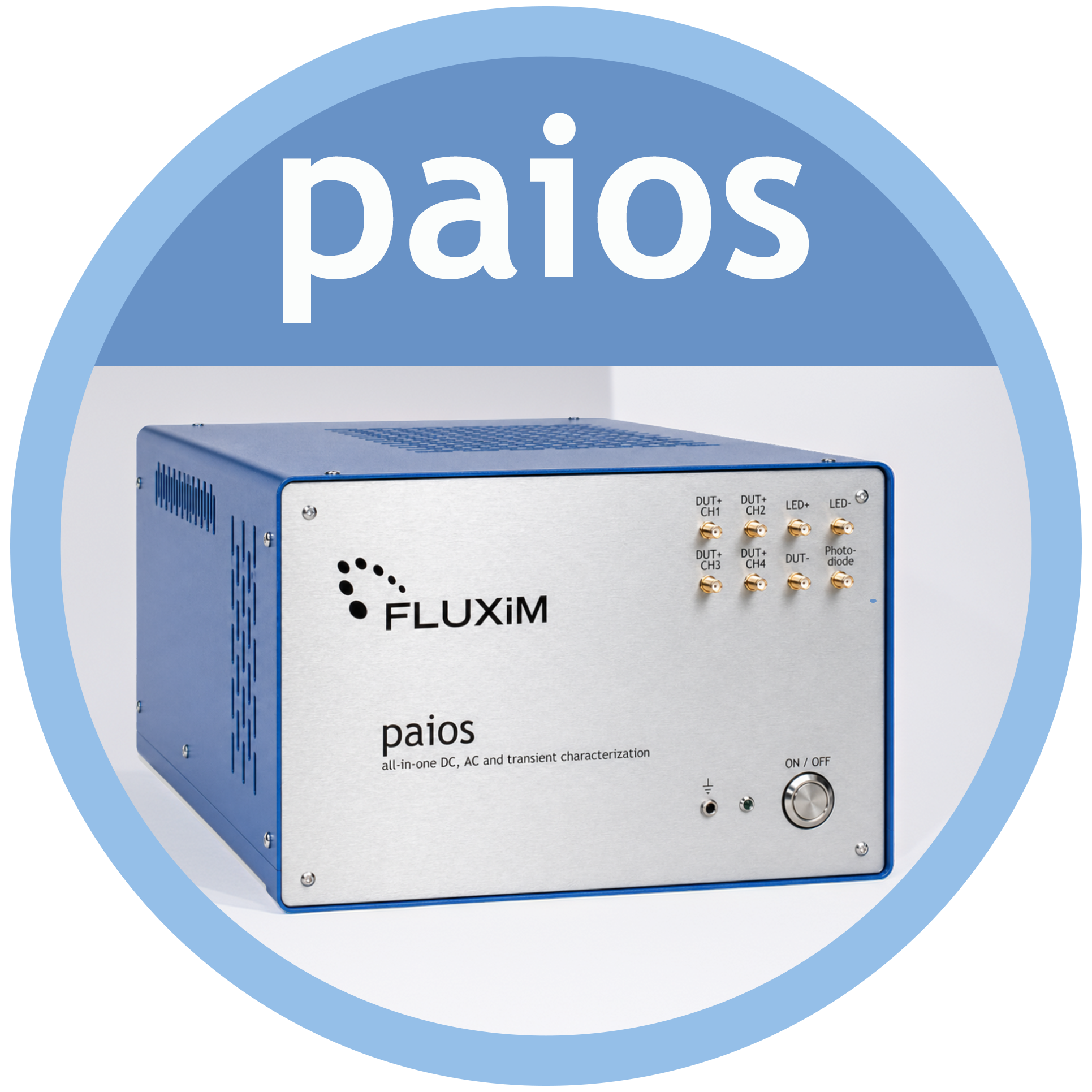

Measurement Platform for Electro-Optical Characterization
Paios performs various opto-electrical experiments on solar cells and OLEDs with one click. Store measurements in a database, analyse, compare and postprocess it directly in the Paios software.

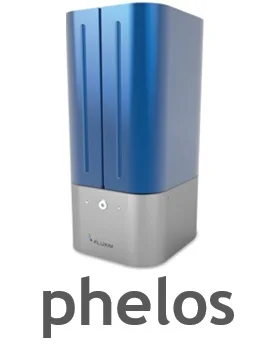

Measurement Tool for Angular-Dependent OLED Emission
Phelos measures the spectrum of OLEDs over various angles. From the data the emission-zone (position and orientation) of the device can be determined.
The SimOEP 2018 conference takes place on 04-06 September 2018 in Winterthur, Switzerland.

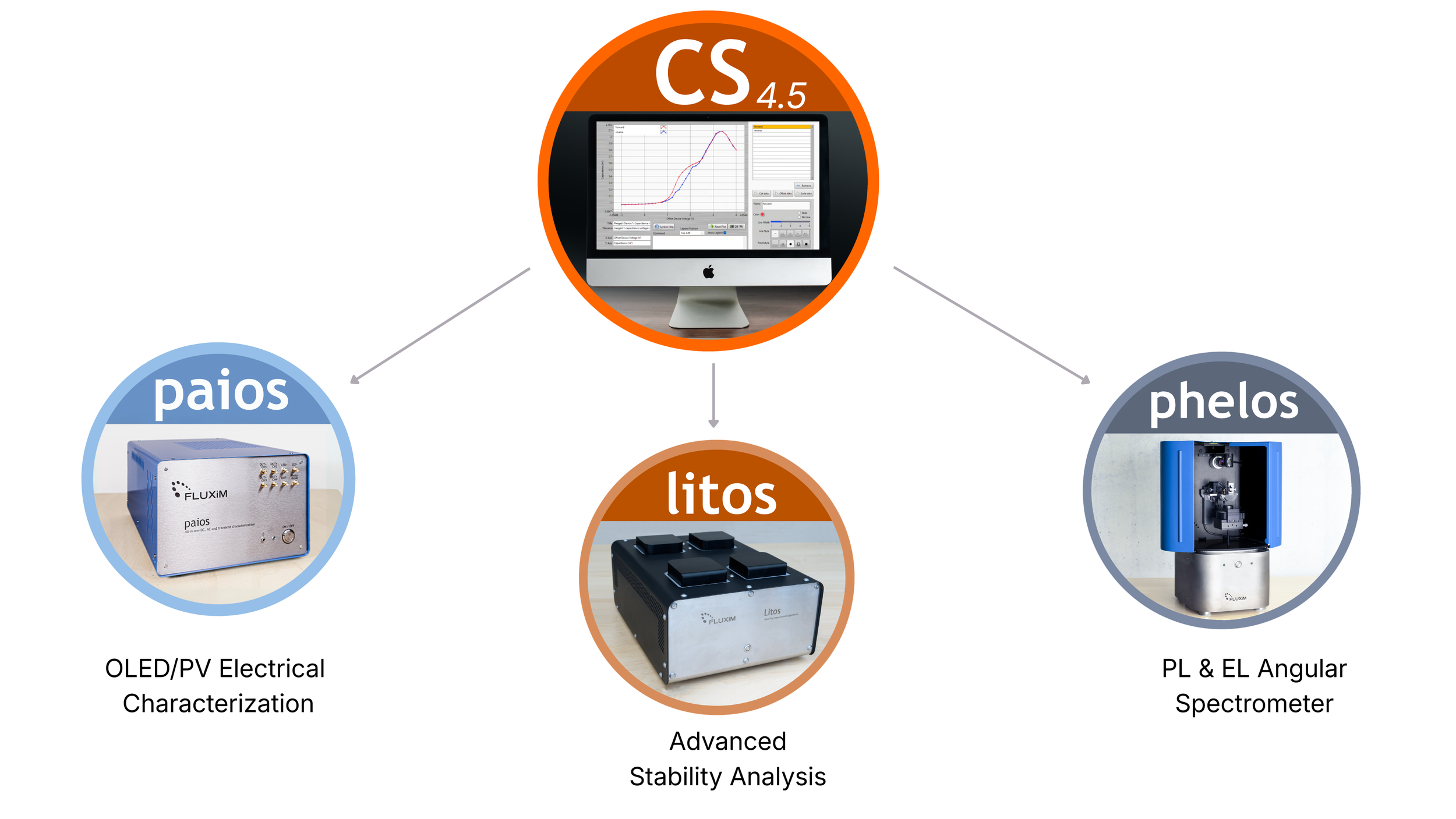

The new software version for Paios and Phelos is here. It contains many new features that help users do great research.
What our Customers say about us
The setfos software is a fundamental optical simulation tool for the development of highly efficient OLED structures. New features of this software like including several different emission zones are of major importance for developing efficient white light OLED structures containing more than one emitting material. The flexibility, speed, and reliability of this software combined with its huge variety of simulation tools concerning various physical key quantities like angular dependence, color coordinates, or reflection spectra allow further improvement and basic insight of OLEDs.
Dr. Jan Blochwitz-Nimoth CTO Novaled AG, Dresden, Germany
The PAIOS/SETFOS package has been an asset to our research capability in CSIRO Energy and a key tool in our research and assessment of next generation thin-film photovoltaics, in particular organic and perovskite solar cells. One of the key points of differentiation – and a clear attraction – has been flexibility of the system and the ease in which user-defined experiments can be created. Our Team has appreciated the interaction with Fluxim and realised this has been much more than a transactional experience – we’ve formed a real partnership between developers and researchers. Over the past 2 years we have had the opportunity to suggest end-user modifications to the PAIOS system which have been genuinely considered and in most cases implemented in subsequent version updates. Such a client-developer relationship has been mutually beneficial, ultimately as an improved research tool, yet more than that it helped us build trust and respect as researchers.
Dr Gregory J. Wilson PhD, Research Group Leader | Solar Energy Systems, CSIRO Energy (Newcastle, Australia)
The software Setfos is an efficient design and simulation tool for Organic LEDs and Solar Cells. Our post graduate and PhD scholars are using it and found it useful for their research work in related areas. I have no hesitation in recommending it to faculty & students for their research work.
Dr. Rajesh Mehra, Head of Electronics & Communication Engineering Department, National Institute of Technical Teachers' Training & Research
The software Setfos is an outstanding program for assisting in the development of OLED displays. It provides the predictive capabilities, and physical insight into the optical performance that is needed to optimise your design. It's a fast and powerful package that a user will immediately benefit from.
Dr. Ian Parker, Materials Development Manager DuPont Displays, Santa Barbara, USA
Setfos has been a great simulation software for OLED designs. The user interface is intuitive to use, and the graphical presentation of the simulation results is well done. We find the quantification of optical modes and determination of their dispersion particularly useful. It allows us to optimize the OLED structure with a few clicks, and the results are in good agreement with experimental data. Setfos has saved us a tremendous amount of time to model our nanostructured OLEDs. It is truly a powerful tool for our OLED research.
Franky So, North Carolina State University
I have used setfos extensively to investigate the emission zone in polymer light-emitting diodes and electrochemical cells. The speed, reliability, and flexibility of this software make it ideal for a wide range of applications, particularly in the optimization of device structures or in the fundamental research of device physics.
Dr. Janelle Leger University of California Santa Cruz, USA
We successfully characterized the transient response of silicon-based solar cells with this measurement system. For instance, we were able to determine the electron mobility and photo-carrier lifetime.
Prof. Dr. Seung Jae Baik,
Korea Advanced Institute of Science and Technology (KAIST) South Korea
This automated measurement platform allows one to perform a series of measurements on organic solar cells within a matter of minutes, which otherwise would have taken days.
Tom van der Hofstad
Eindhoven University of Technology, The Netherlands
At the Holst Centre, in the OLED Lighting program, the setfos modeling tool has proven its worth by enabling accurate predictions of light emission from OLEDs on glass, plastic and metal substrates. I have experienced firsthand that this sophisticated and user-friendly software package can be used to interpret measurements and extract the relevant parameters efficiently. Such information is essential in order to improve light emission from novel OLED device designs. Fluxim also provides excellent customer support by hosting annual workshops, providing assistance whenever requested and by inquiring what features are considered valuable and essential.
Dr. Stephan Harkema, Senior Researcher
Holst Centre / TNO, Eindhoven, the Netherlands
setfos is a very convenient tool to be used to predict the optical and electrical outcome from OLED and OPV devices. It also shows a physical insight of the charge transport properties in organic electronic system. The user interface is friendly, and it is an ideal tool for optimization of organic device structures.
Dr. Ng Ging-Meng, Research Staff Member
Institute of Materials Research & Engineering (IMRE), A*STAR, Singapore
Setfos is a great product for researchers who want to simulate the performance of organic solar cells without having to design and build custom simulation software. By licensing Setfos, we were able to quickly answer many research questions and publish results in a matter of months.
Jon Bartelt, Stanford University, Stanford CA, USA

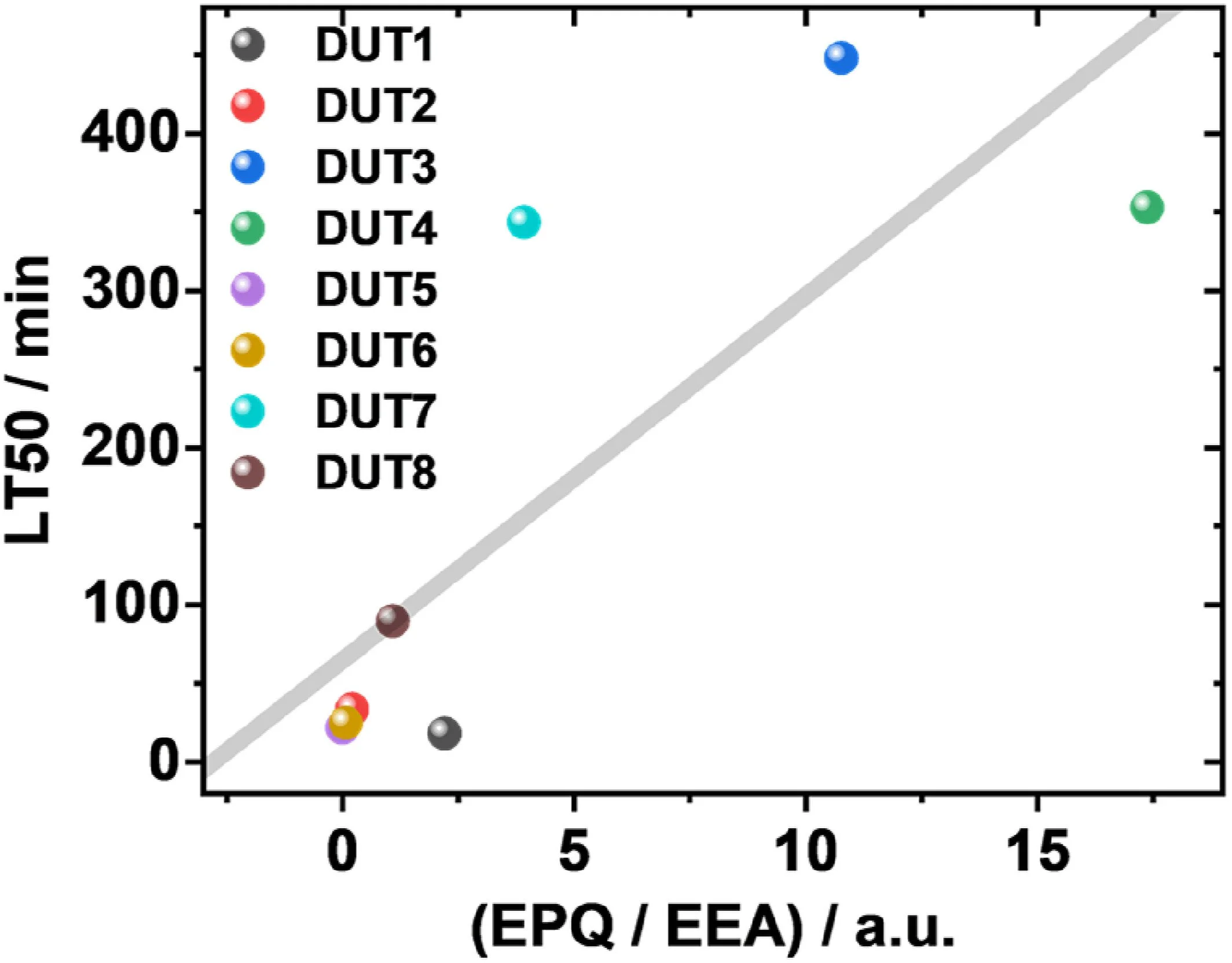

Publications using our Products
Find here a list of the most recent publications where our customers have used one of our products. A full list with all publications can be found here: publication list
Matthias Diethelm, Quirin Grossmann, Andreas Schiller, Evelyne Knapp, Sandra Jenatsch, Maciej Kawecki, Frank Nüesch, and Roland Hany
Adv. Optical Mater. 2018, 1801278
Ru-Ze Liang, Maxime Babics, Victoria Savikhin, Weimin Zhang, Vincent M. Le Corre, Sergei Lopatin, Zhipeng Kan, Yuliar Firdaus, Shengjian Liu, Iain McCulloch, Michael F. Toney, and Pierre M. Beaujuge
Adv. Energy Mater. 2018, 8, 1800264
Yi-Ting Lee, Po-Chen Tseng, Takeshi Komino, Masashi Mamada, Ruby Janet Ortiz, Man-Kit Leung, Tien-Lung Chiu, Chi-Feng Lin, Jiun-Haw Lee, Chihaya Adachi, Chao-Tsen Chen, and Chin-Ti Chen
ACS Appl. Mater. Interfaces, 2018
Yingying Zhang, Xiong Li, Denghui Xu, Fanwen Meng, Rong Hu, Jia Zhao
Surface & Coatings Technology, 2018
Akanksha Jetly, Rajesh Mehra
Optical Materials 88, 304 (2019)
Francesco Pagani, Evelyn Stilp, Reto Pfenninger, Eduardo Cuervo Reyes, Arndt Remhof, Zoltan Balogh-Michels, Antonia Neels, Jordi Sastre-Pellicer, Michael Stiefel, Max Döbeli, Marta D Rossell, Rolf Erni, Jennifer L.M. Rupp, and Corsin Battaglia
ACS Appl. Mater. Interfaces, 2018
